PHI Quantera II™

X-ray Photoelectron Spectroscopy / XPS

PHI Quantera II™

Superior Micro Area Performance

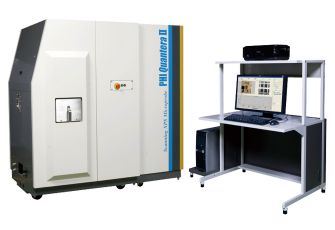

The PHI Quantera II is an XPS instrument which can produce a micro-focused, raster scanned x-ray beam with a minimum beam size of 7.5 μm in diameter.
In addition to superior micro area performance, the PHI Quantera II offers high throughput automated analysis and depth profiling.

Micro to Large Area XPS

ULVAC-PHI has been successful in improving the quality of the patented monochromatic, micro-focused, scanning x-ray source which is the core technology of the PHI Quantera II. Improvements in the quality of the monochromatic crystal enabled the x-ray beam size down to 7.5 μm in diameter.  Micro area XPS sensitivity has also improved by 20%.

The PHI Quantera II can also perform high resolution average, area, linear, and multi-point analyses of large areas by using both high-speed XPS and dynamic emittance matching.


Highest Small Area XPS Sensitivity

Fig. 1-a and 1-b shows an optical image (taken using PHI Quantera II’s sample positioning station) and an x-ray beam induced secondary electron image (SXI). We can clearly identify the blue, green, and red pixels in Fig. 3a, tens of microns away from each other, in Fig. 1-b.  This shows with the PHI Quantera II, we can confidently locate the analyzing point on the sample, including insulators.

By using the charge neutralizer used in XPS for SXI, we can locate the exact same point on both.

Fig. 1-c shows an example of survey spectra done simultaneously obtained from depth profiling, using a 10 μm diameter x-ray beam, on the blue, green, and red pixels. The PHI Quantera II is the only XPS instrument that can conduct micro area depth profiling on various samples within what we offer on a standard basis.

binding-energy_en_00.png binding-energy_en.png

Fig 1, Depth profiling analysis by survey spectrum of electrode

Turnkey Dual Beam Charge Neutralization

XPS is used in elemental analysis on a wide range of samples ranging from insulators to conductors.  However, resetting the charge neutralization, when analyzing insulators, was a heavy task for the user.

The PHI Quantera II uses the PHI’s patented dual beam charge neutralization using low-energy electron beam and ion beam simultaneously allowing automated analysis for insulators. This has also made automated height alignment easier.


Chemical Imaging

The PHI Quantera II is equipped with a high efficient input lens and 32 channel detector used to attain high sensitivity spectra vital for micro area qualitative and quantitative analyses.  This enables simultaneous high sensitivity unscanned spectrum acquisition and imaging.  The MultiPak, data reduction software offers a variety of tools for data reduction, including linear least squares fitting and curve fitting.

The bottom figure shows a chemical imaging of oxide (CuO) and sulfate (CuSO4) on a copper surface. The red, green, and blue parts show the Cu 2p spectrum of Cu, CuO, and CuSO4 after linear least squares fitting. The bottom figure shows spectra extracted from the image.


Various Sample Navigation Tools

SXI Image

The SXI image is an image of the secondary electrons, excited by the micro-focused x-ray source, taken in by the analyzer. Using the actual x-ray used for analyzing enables accurate and quicker point and click analysis area definition.


High Resolution Intro Camera

We can determine the analyzing point from the high resolution photo take at the introduction chamber. The digital zoom function enables accurate and quick navigation.


Optional Sample Positioning Station

The sample positioning station is a digital XY coordinate device using an optical microscope.  This device will help navigate the analyzing point by using the image taken by the optical microscope and the point on the digital XY coordinate.
